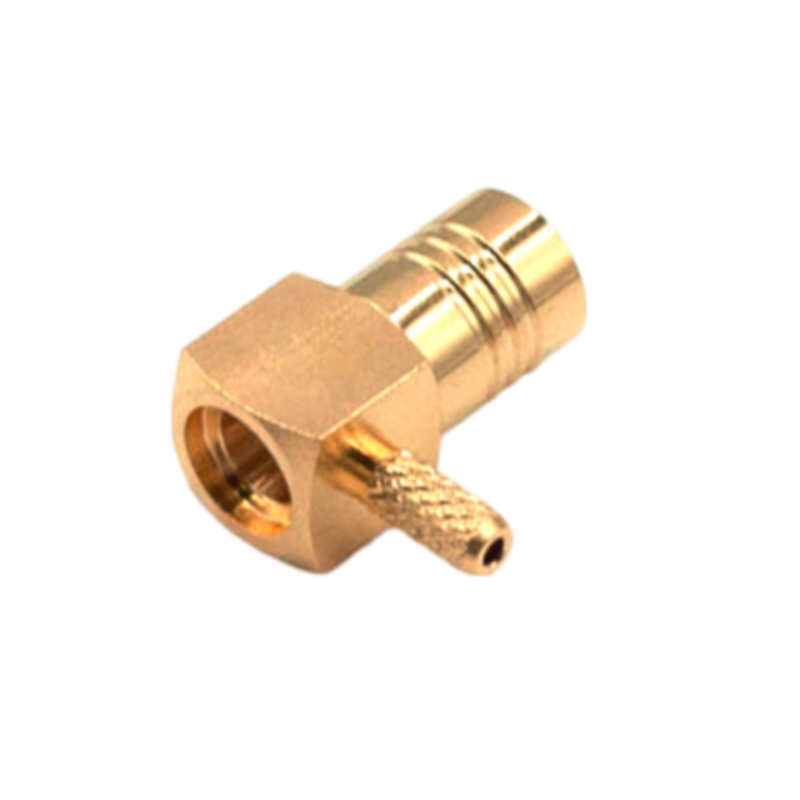

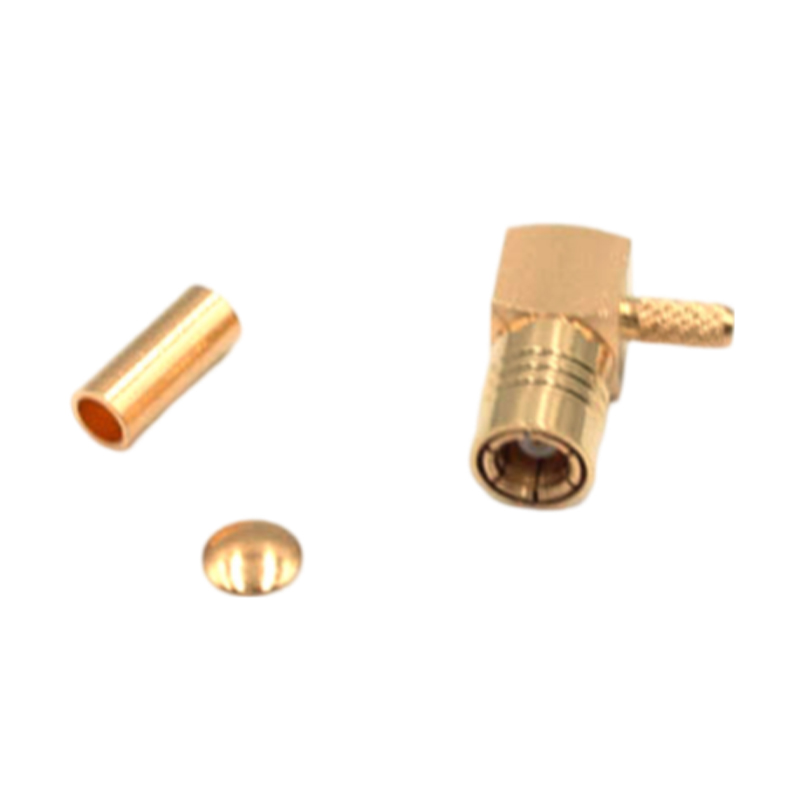

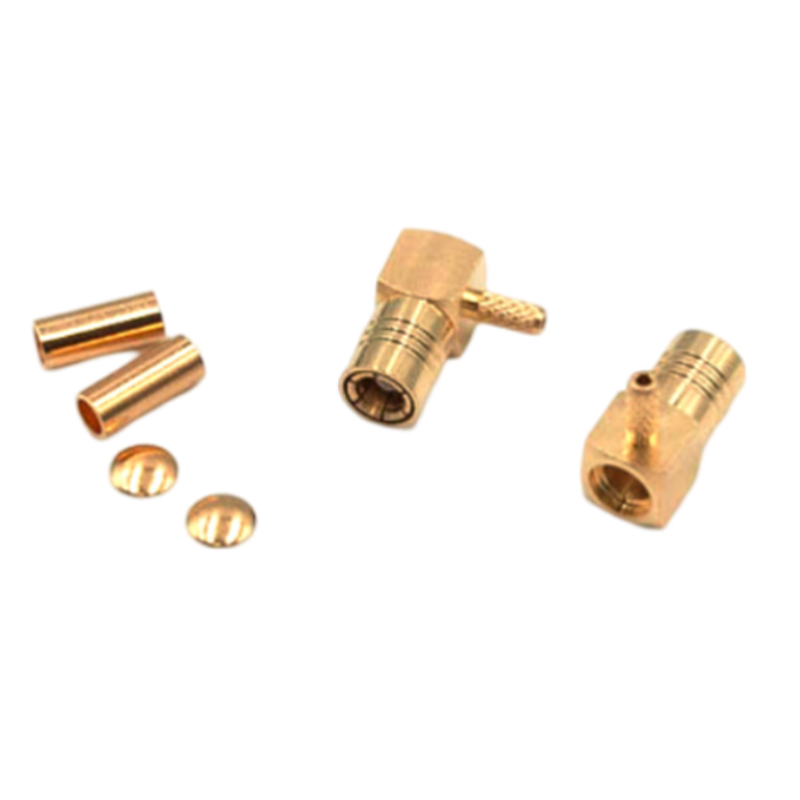

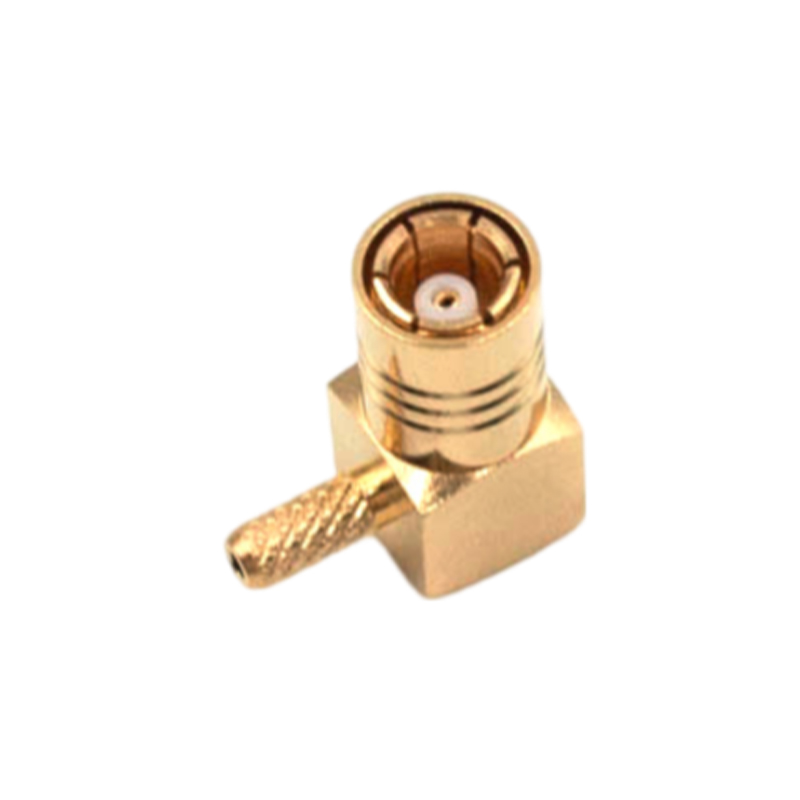

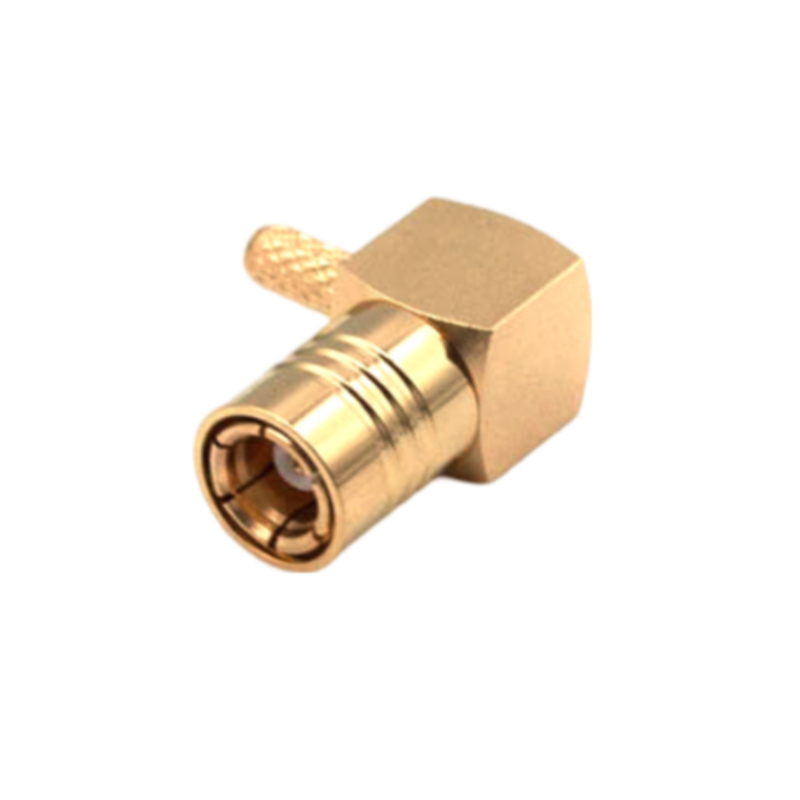

SMB Female Right Angle Connector For RG178 Cable

SMB Female Right Angle Connector For RG178 Cable

SMB-C-KW178
SMB has a snap-on coupling allowing quick but secure connection, and is usable up to 4 GHz. The impedance is controlled at 50Ω for all types. Connector styles are available for flexible, conformable and semi-rigid cables.
Versions of these series connectors are available for mounting to printed circuit boards using both thru-hole soldered and thru-hole press-fit techniques, as well as surface mount technology (SMD).

Consultation

Technical Indicators Packing

SPECIFICATION
SMB female right angle connector for RG178 cable
Part Number: SMB-C-KW178
Dimensions are in millimeters
Interface
According to			IEC 60169-10
Electrical
Characteristic Impedance			50 ohm
Frequency Range			DC-4GHz
VSWR			≤1.45（0-3G）
Dielectric Withstanding Voltage			≥750V RMS,50Hz,at sea level
Dielectric Resistance			≥1000MΩ
Contact Resistance			Center Contact ≤5.0mΩ
			Outer Contact ≤2.5mΩ
Mechanical
Durability			Mating cycles ≥500 cycles
Material and plating
	Material			Plating
Body	Brass			Au
Insulator	PTFE			-
Center conductor	Beryllium			Au
Other	Brass			Au
Environmental
Temperature Range		-40℃～+85℃
Watertightness		IP67
RoHS-compliance		Full RoHS compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.

RF means Radio Frequency.
RF is generally defined at 300MHz to 8GHz, while microwave is defined at 8G to 40G.
The ministry of industry and information technology has released the frequency use plan of 5G system within the frequency band of 3000-5000MHz, making China the first country in the world to release the frequency use plan of 5G system within the frequency band.
In the 5G era, the number of channels has become more and more integrated, and 5G RF connectors are mainly board-to-board blind plug connectors.

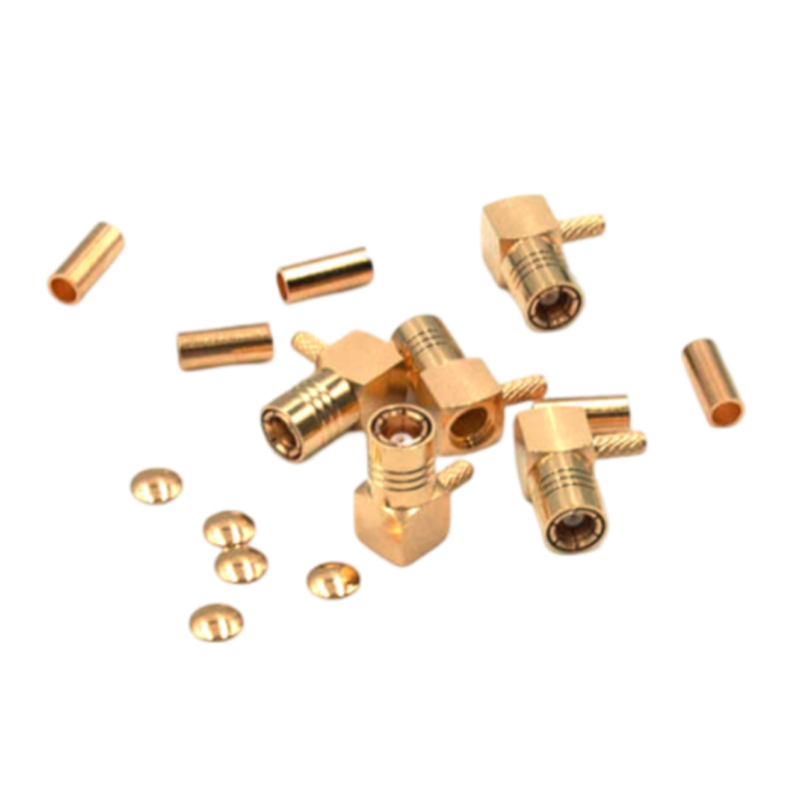

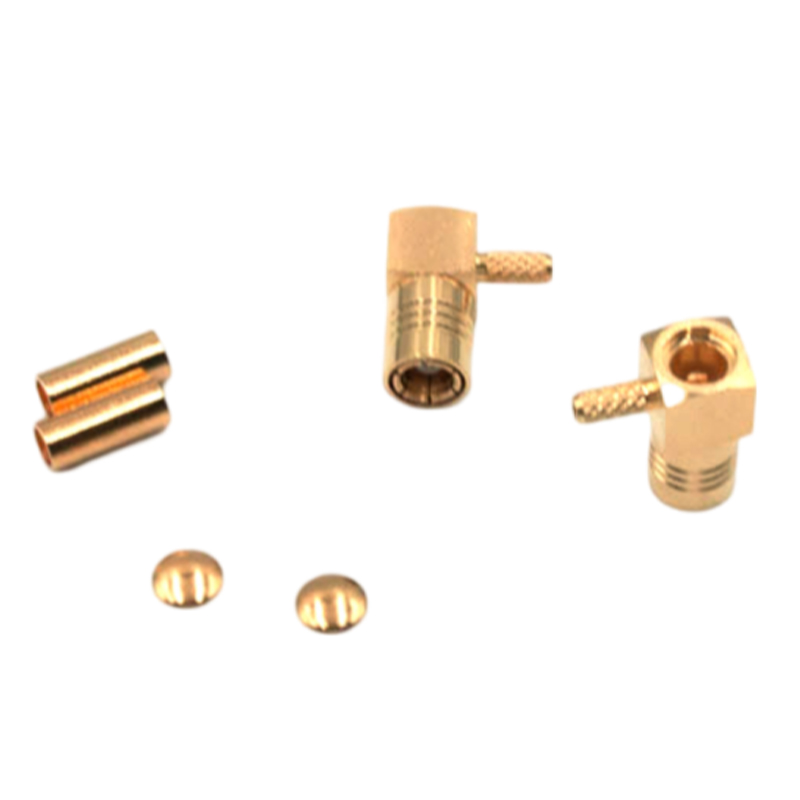

The packing pictures are only for reference, all packing can be customized by different requirements
