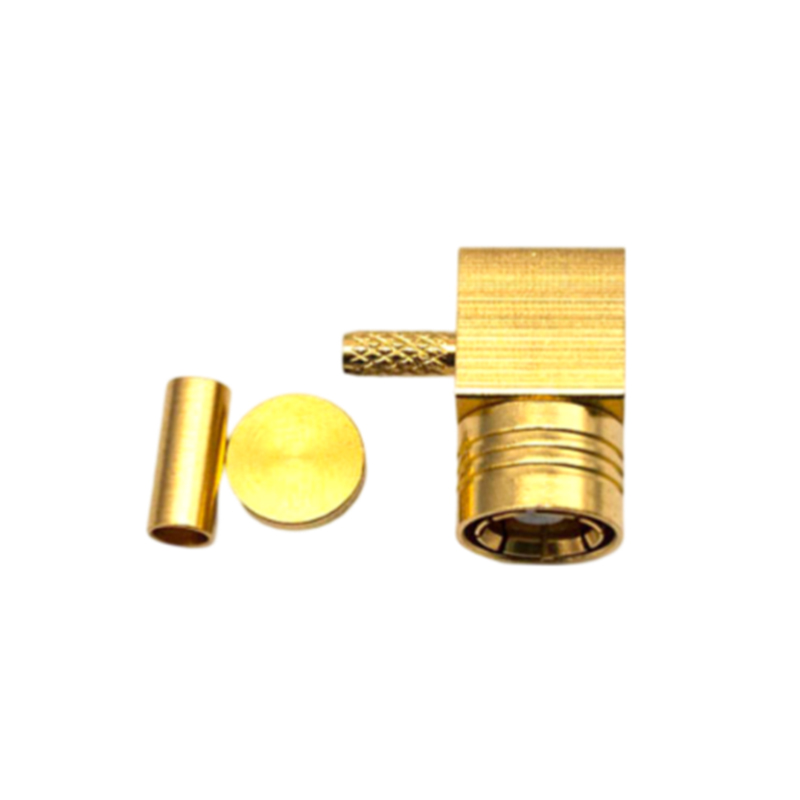

75Ohm SMZ Female Right Angle Connector For RG179 Cable

75Ohm SMZ Female Right Angle Connector For RG179 Cable

SMZ-C-75KW179R
SMZ seies is a kind of smap-on self-locked coupling connectors developed from SMB.With the advantage of vibration-proof,high reliability, small and easy mating, superior electrical peformance, the products are widely used in radio equipments and instruments.

Consultation

Technical Indicators Packing

SPECIFICATION
75Ohm SMZ female right angle connector for RG179 cable
Part Number: SMZ-C-75KW179R
Dimensions are in millimeters
Interface
According to			MIL-C-39012
Electrical
Characteristic Impedance			75 ohm
Frequency Range			DC-4GHz
VSWR			≤1.25（0-1G）
Dielectric Withstanding Voltage			≥750V RMS,50Hz,at sea level
Dielectric Resistance			≥500MΩ
Contact Resistance			Center Contact ≤5.0mΩ
			Outer Contact ≤2.5mΩ
Mechanical
Durability			Mating cycles ≥500 cycles
Material and plating
	Material			Plating
Body	Brass			Au
Insulator	PTFE			-
Center conductor	Beryllium			Au
Other	Brass			Au
Environmental
Temperature Range		-40℃～+85℃
Watertightness		IP67
RoHS-compliance		Full RoHS compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.

RF means Radio Frequency.
RF is generally defined at 300MHz to 8GHz, while microwave is defined at 8G to 40G.
The ministry of industry and information technology has released the frequency use plan of 5G system within the frequency band of 3000-5000MHz, making China the first country in the world to release the frequency use plan of 5G system within the frequency band.
In the 5G era, the number of channels has become more and more integrated, and 5G RF connectors are mainly board-to-board blind plug connectors.

The packing pictures are only for reference, all packing can be customized by different requirements
