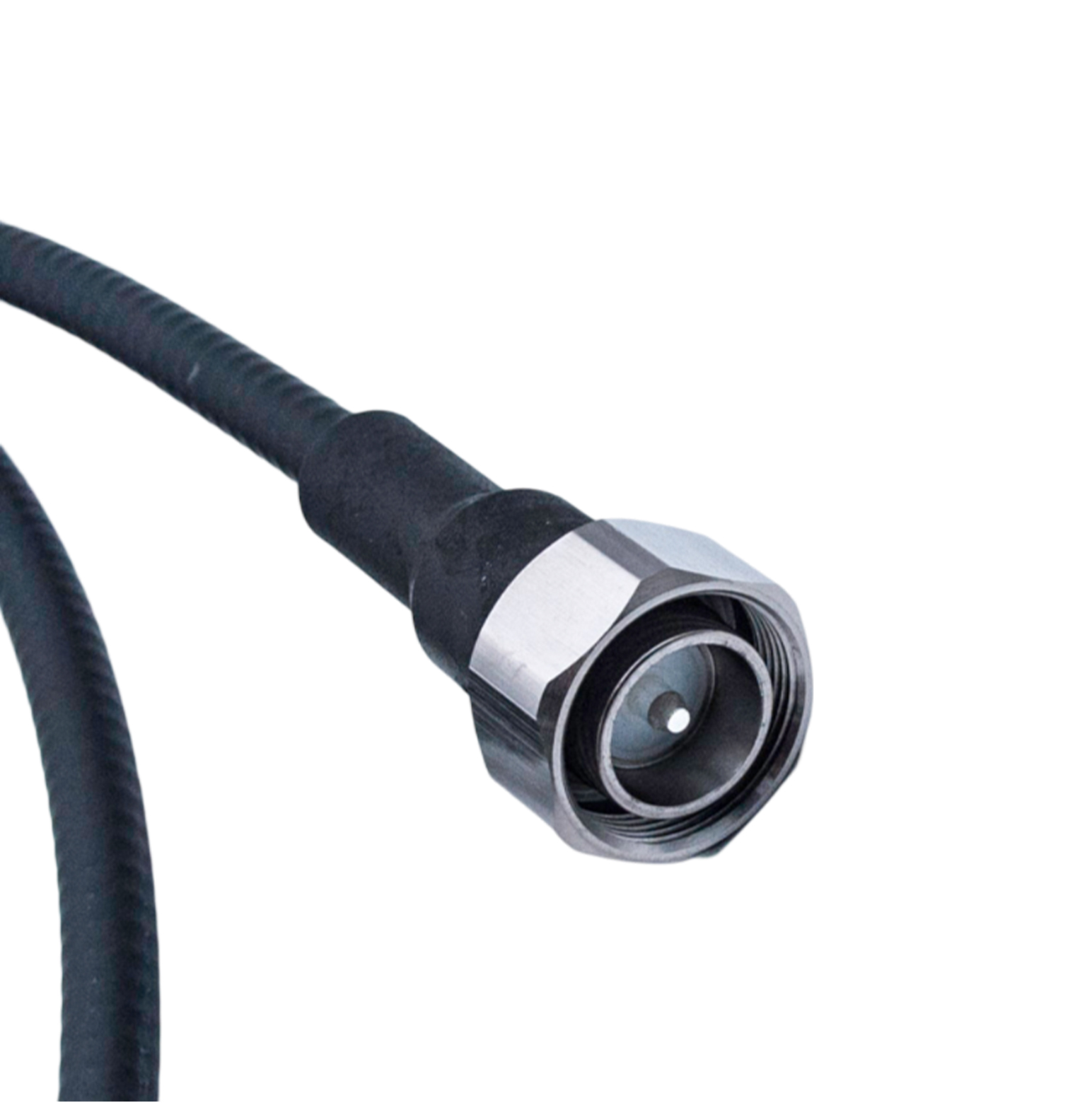

1/4 Superflex Jumper, 4.3-10 Male To 4.3-10 male, (L)m

1/4 Superflex Jumper, 4.3-10 Male To 4.3-10 male, (L)m

4.3-10-H-J1-4S-7/4.3-10-H-J1-4S-7-(L)m

Consultation

Technical Indicators Packing

SPECIFICATION
1/4 Superflex Jumper, 4.3-10 Male To 4.3-10 male, (L)m

P/N：4.3-10-H-J1-4S-7/4.3-10-H-J1-4S-7-(L)m Dimensions are in millimeters
Interface
According to			IEC 60169-54
Electrical
Characteristic Impedance			50 ohm
Frequency Range			0-6GHz
VSWR			≤1.2
PIM ( @2-tonex20w)			≤-163dBc
Dielectric Resistance			≥5000MΩ
Mechanical
Durability			Mating cycles ≥100 cycles
Material and plating
	Material			Plating
Body	Brass			Tri-Alloy
Insulator	PTFE			-
Center conductor	Brass			Ag
Environmental
Temperature Range		-40℃～+85℃
Water tightness		IP68
RoHS-compliance		Full RoHS compliance
Salt-fog test		96h

RF-Combination connectors of different connector series can be assembled as either straight or angle versions by using the corresponding clamps. With only one combination connector and the different cable clamps, a variety of connectors can be produced allowing a reduction in stock-levels. The technical specifications can be obtained from the descriptions in the respective chapters for each series.
For example: for ½” or ½”superflex jumper cable, DIN male straight(right angle)
on both sides, VSWR can reach less than 1.10@(0-3)GHz,
1.20@(0-6)GHz PIM less than -160dBc@(2-tone × 20W).

The packing pictures are only for reference, all packing can be customized by different requirements
