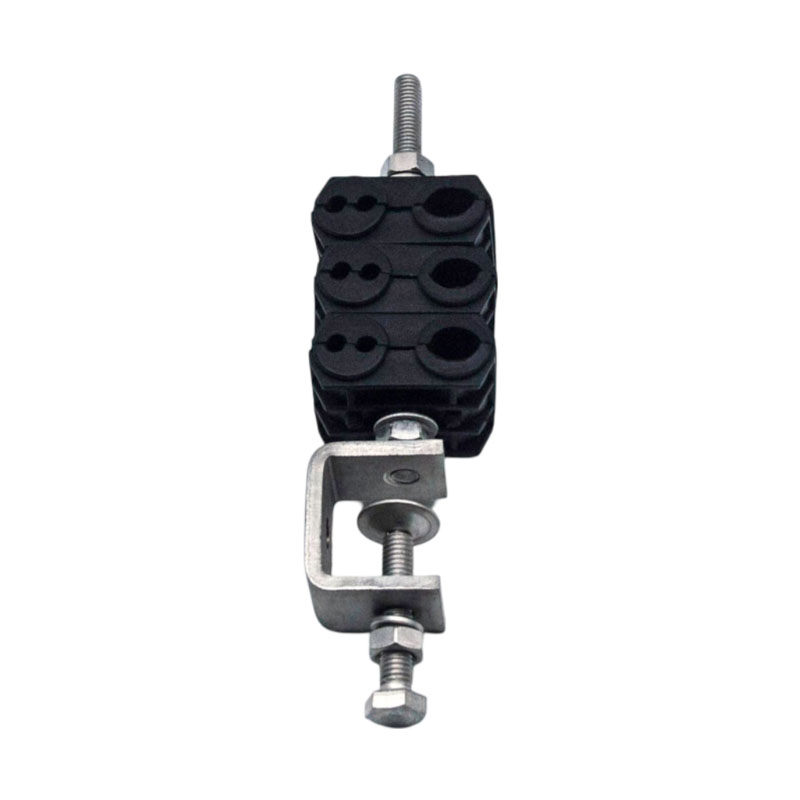

Feeder Clamp, 2*FO(4.8mm)+1*DC(9.5-14mm), Three way

Feeder Clamp, 2FO(4.8mm)+1DC(9.5-14mm), Three way

Model:Feeder Clamp 2FO(4.8mm)+1DC(9.5-14mm), Three way
The feed line clamping apparatus are suitable for mobile communication base depot feed line fixed,has many kinds of collocation methods in view of the different customer request,the clamp cover may use the polypropylene(PP),the metaformaldehyde (POM,ABS) manufactures, the support and the fastener use high quality stainless steel manufacture,is suitable for each kind of poor weather condition strip.

Consultation

Technical Indicators Packing

SPECIFICATION

Feeder Clamp, 2*FO(4.8mm)+1*DC(9.5-14mm), Three way

Compositive List：

SN	Part Name	Spec	Quantity	Note
1	Angle Adaptor		1 Pcs	SUS304
2	Bolt	M8×40	1 Pcs	SUS304
3	Gasket	φ20	1 Pcs	SUS304
4	Clamping Piece		6 Pcs	PP
	Rubber	2*4.8mm	6 Pcs	Rubber
5	Rubber	9.5-14mm	6 Pcs	Rubber
6	Screw	M8*120	1 Pcs	SUS304
7	Nut	M8	4 Pcs	SUS304
8	Washer	φ8	2 Pcs	SUS304
9	Spring Washer	φ8	2 Pcs	SUS304

Capability Index;

high temperature： +75℃；

low temperature： -40℃；

salt spray test： 48h，No Rustiness

Passive components,such as dummy load,attenuator,splitter and coupler,are widely-used in telecom infrastructure and projects,both indoors and outdoors.
With high-performance and excellent design,the components amde by ZK have grown to be another pillar industry in telecom field.
Indoor network solutions combine all these passive components to unify inner system and bring convenience and briefness in installation and actual application.

The packing pictures are only for reference, all packing can be customized by different requirements
