7/8" Outdoor Grounding Kits 0.6m

Model:7/8" Outdoor Grounding Kits 0.6m
Grouding kit is suitable in mobile communication system's ground protection,prevents and reduces as a result of the induction thunder stroke,the surge overvoltage and the surge eclectric current to equipment's damage,has the enough thunder stroke discharge current capability,the guarantee system equipment safe reliability service.
In the grounding uses the electric cable line length may have custom-made according to the customer request.

Consultation

Technical Indicators Packing

SPECIFICATION

7/8” Outdoor Grounding Kits 0.6m

No.	Name	Size	Qty	Note
1	Ground strap	7/8”	1 pcs	T2 Copper
2	jump ring	7/8”	1 pcs	SUS304
3	Copper Bolt	φ5×5	2 pcs	T2 Copper
4	Cable	6AWG	1 pcs	0.6M
5	Lug	16mm2-M8 One Holes	1 pcs	T2 Copper
6	Lug	16mm2-M6 Two Holes	1 pcs	T2 Copper
7	Hot Shrink	Φ12×28	1 pcs
8	Bolt	M8*25	1 pcs	SUS304
9	Nut	M8	1 pcs	SUS304
10	Washer	Φ8	1 pcs	SUS304
11	Spring Washer	Φ8	1 pcs	SUS304

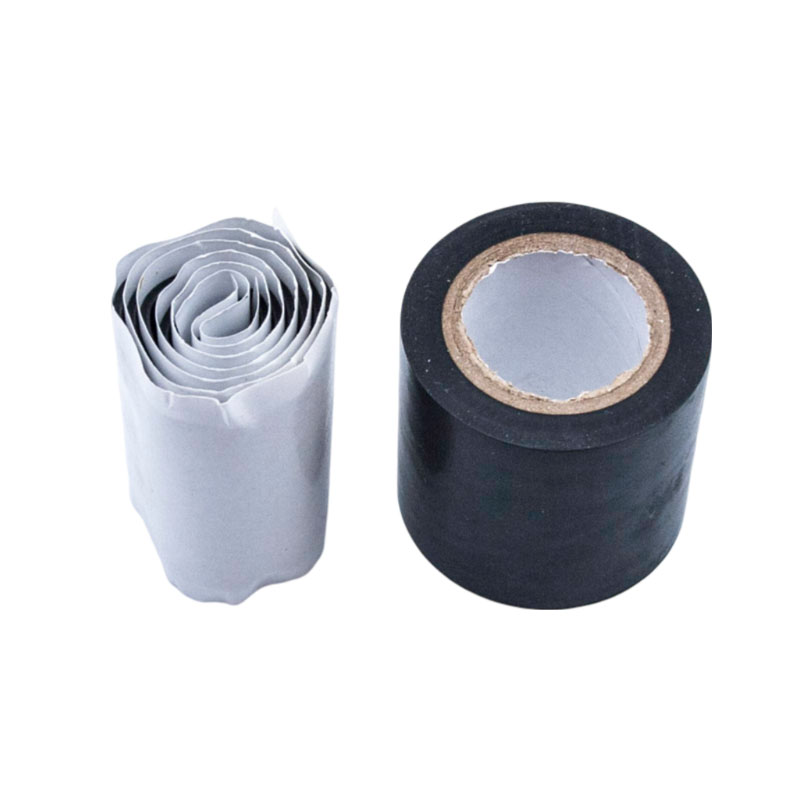

	Tape	50mm*6m	1 pcs	PVC
	Plaster	250500mm	1 pcs

Basic capability：
Touch Resistance ≤ 10 mΩ
Insulation Resistance≥ 500MΩ
Resists Trike Electricity≥50 KA
Waterproof IP67

Passive components,such as dummy load,attenuator,splitter and coupler,are widely-used in telecom infrastructure and projects,both indoors and outdoors.
With high-performance and excellent design,the components amde by ZK have grown to be another pillar industry in telecom field.
Indoor network solutions combine all these passive components to unify inner system and bring convenience and briefness in installation and actual application.

The packing pictures are only for reference, all packing can be customized by different requirements
