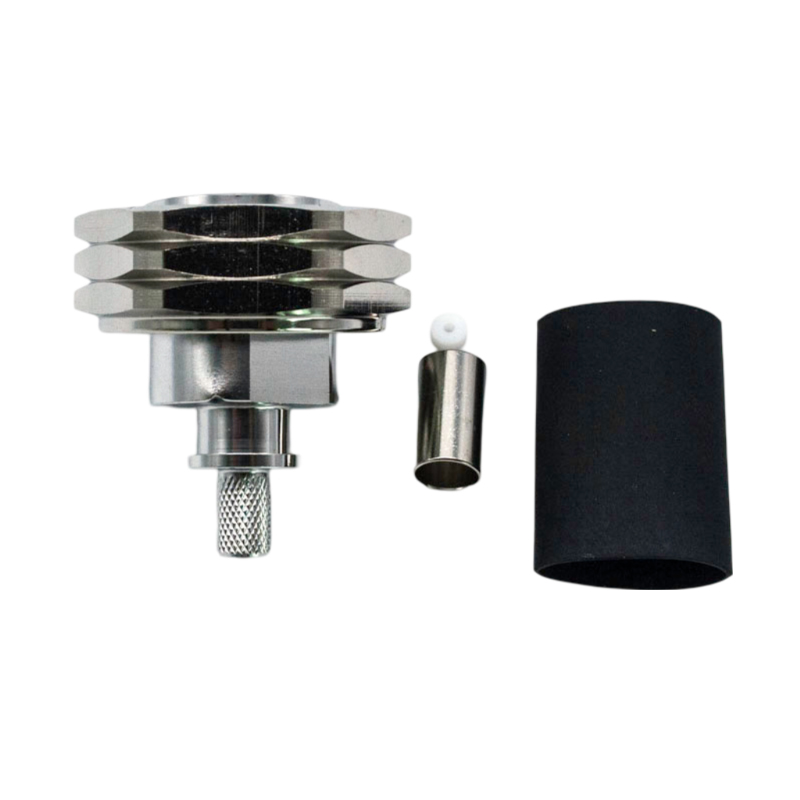

7/16 MALE CONNECTOR FOR LMR240 CABLE CRIMP

7/16 MALE CONNECTOR FOR LMR240 CABLE CRIMP

Model:7/16-C-J240-2

Consultation

Technical Indicators Packing

SPECIFICATION
7/16 MALE CONNECTOR FOR LMR240 CABLE CRIMP

Part Number: 7/16-C-J240-2 Dimensions are millimeters
Interface
According to		IEC 60169-4
Electrical
Characteristic Impedance		50 ohm
Frequency Range		DC-7.5GHz
VSWR		≤1.15(0-3G)
Dielectric Withstanding Voltage		≥4000V RMS,50Hz,at sea level
Dielectric Resistance		≥10000MΩ
Contact Resistance		Center Contact ≤0.4mΩ
		Outer Contact ≤0.2mΩ
Mechanical
Durability		Mating cycles ≥500 cycles
Material and Plating
	Material		Plating
Body Center conductor Insulator Gasket Other	Brass Phosphor Bronze PTFE Silicone rubber Brass		Tri-Alloy Ag - - Ni
Environmental
Temperature Range		-40℃～+85℃
Watertightness		IP67
RoHS-compliance		Full RoHS Compliance
Salt-fog test		96h

RF means Radio Frequency.

RF is generally defined at 300MHz to 8GHz, while microwave is defined at 8G to 40G.

The ministry of industry and information technology has released the frequency use plan of 5G system within the frequency band of 3000-5000MHz, making China the first country in the world to release the frequency use plan of 5G system within the frequency band.

In the 5G era, the number of channels has become more and more integrated, and 5G RF connectors are mainly board-to-board blind plug connectors.

The packing pictures are only for reference, all packing can be customized by different requirements
