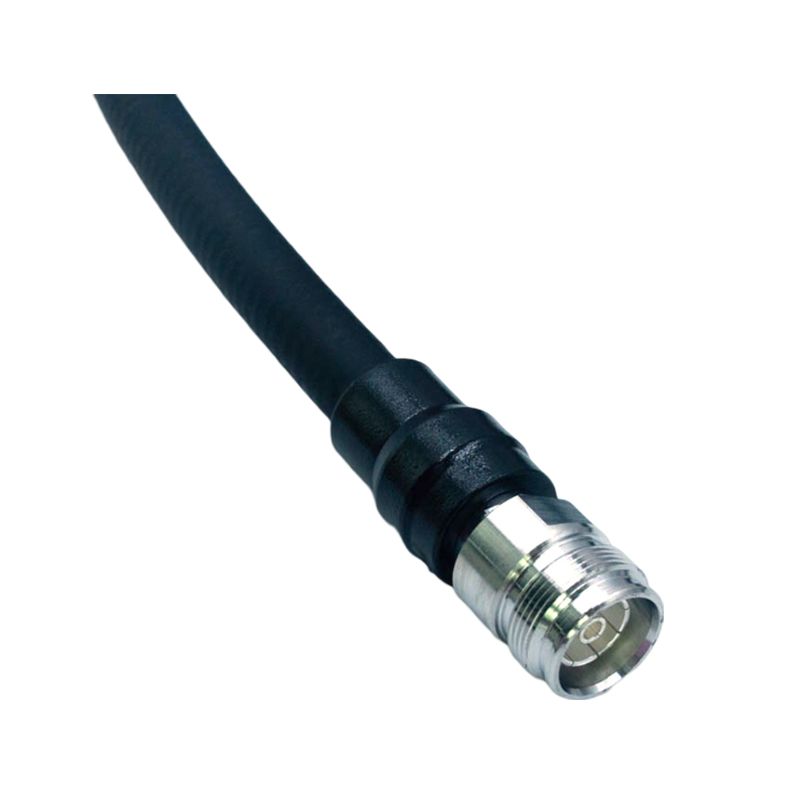

1/2”superflex Jumper, DIN Male Right Angle To 4.3/10 Female, L(m)

1/2”superflex Jumper, DIN Male Right Angle To 4.3/10 Female, L(m)

Model:7/16-H-JW1/2S-2-4.3/10-H-K1/2S-L(m)

Consultation

Technical Indicators Packing

SPECIFICATION
1/2”superflex Jumper, DIN Male Right Angle To 4.3/10 Female, L(m)

P/N：7/16-H-JW1/2S-2-4.3/10-H-K1/2S-L(m) Dimensions are in millimeters
Interface
According to			IEC 60169-4/ IEC 60169-54
Electrical
Characteristic Impedance			50 ohm
Frequency Range			0-3.6GHz
VSWR			≤1.20
PIM ( @2-tonex20w)			≤-160dBc
Dielectric Resistance			≥5000MΩ
Mechanical
Durability			Mating cycles ≥100 cycles
Material and plating
	Material			Plating
Body	Brass			Tri-Alloy
Insulator	PTFE			-
Center conductor	Brass			Ag
Environmental
Temperature Range		-40℃～+85℃
Water tightness		IP68
RoHS-compliance		Full RoHS compliance
Salt-fog test		96h

RF means Radio Frequency.
RF is generally defined at 300MHz to 8GHz, while microwave is defined at 8G to 40G.
The ministry of industry and information technology has released the frequency use plan of 5G system within the frequency band of 3000-5000MHz, making China the first country in the world to release the frequency use plan of 5G system within the frequency band.
In the 5G era, the number of channels has become more and more integrated, and 5G RF connectors are mainly board-to-board blind plug connectors.

The packing pictures are only for reference, all packing can be customized by different requirements
