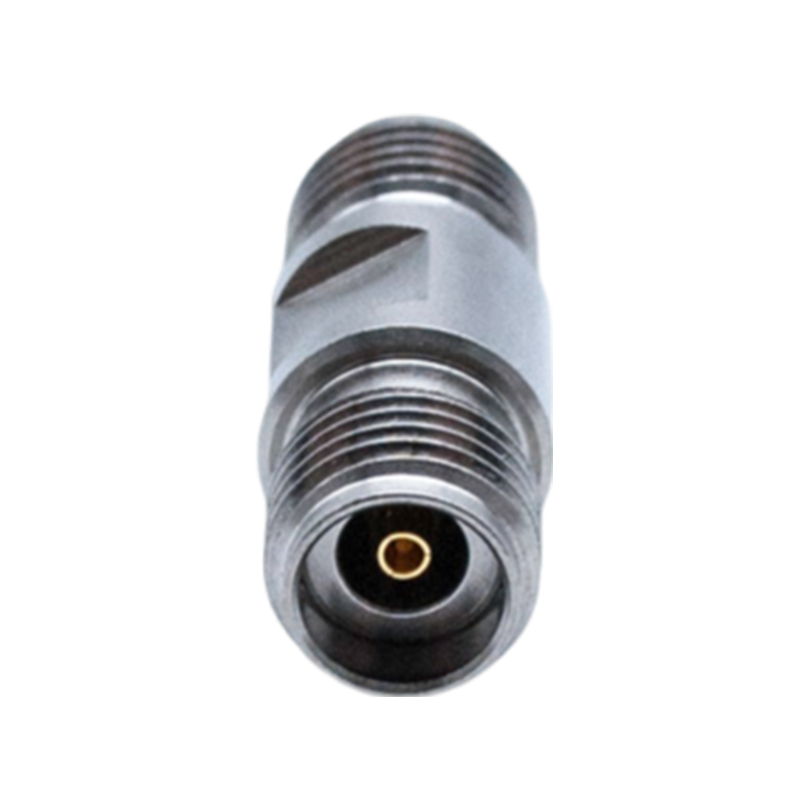

ADAPTOR 2.92 FEMALE TO FEMALE

Model:2.92-KK

Consultation

Technical Indicators Packing

SPECIFICATION
ADAPTOR 2.92 FEMALE TO FEMALE
Part Number: 2.92-KK Dimensions are in millimeters
Interface
According to		IEC61169-35:2011
Electrical
Characteristic Impedance		50 ohm
Frequency Range		DC-40GHz
VSWR		≤1.30
Dielectric Withstanding Voltage		≥750V RMS,at sea level
Dielectric Resistance		≥5000MΩ
Contact Resistance		Center Contact ≤3.0mΩ
		Outer Contact ≤2.0mΩ
Material and Plating
	Material		Plating
Body Center conductor Insulator	STAINLESS STEEL BERYLLIUM COPPER PEI		Au Au -
Environmental
Temperature Range		-40℃～+85℃

MateriaVPlating:
Body:Stainless Steel(S30300)-Passivation
Center Pin: Beryllium bronze(C17300)-Golden Plating
Insulation:PEI

The packing pictures are only for reference, all packing can be customized by different requirements
