Silicone Cold Shrink Tube For 1-2'',1-1-4'',1-5-8''

Silicone Cold Shrink Tube For 1-2'',1-1-4'',1-5-8''

Model:Silicone Cold Shrink Tube

Consultation

Technical Indicators Packing

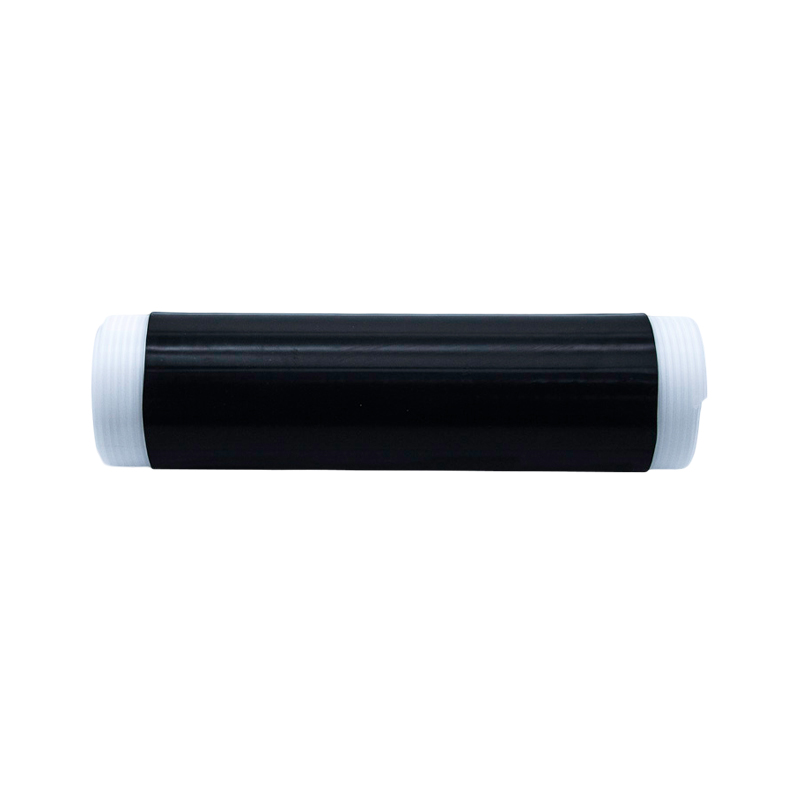

Silicone Cold Shrink Tube (CST-12158SV)
Product Advantages:
1.No torches or heat required.
2.IP68 waterproof.
3.Resists fungus, acids, alkalis, ozong and ultraviolet light
4.Simple and quick installation with low installation-error rate

Order Information
Item No.:	CST-12158SV
Series No.	S02
Mechanical Properties
ID of retratable ripcord	70mm（±2）
Tube length after full-relaxing :	280mm (-0/+15)
Tube length before relaxing :	240mm (±15)
Tube thickness after full-relaxing:	4.0 ±0.5 mm
Material:	Silicone rubber
Foam tape:	40x400x4mm, 1 pieces, For cable OD built-up
Color:	Black
Application Properties
Applicable use range:	21.0-63.0 mm (without foam-tape)
Applicable cable/ connectors in telecom Sealing of coaxial connector from 1/4" through 1-5/8" cable to 1-1/4"or 1-5/8" cable; The connector can be 7/16 DIN & 4.3-10 & N type connector;	Sealing of coaxial connector from 1/4" through 1-5/8" cable to 1-1/4"or 1-5/8" cable; The connector can be 7/16 DIN & 4.3-10 & N type connector;

Technical Properties
Test item	Test Standard	Unit	Value
Dielectric Strength	ASTM D149-75 @1.75	kV/m	21
volume resistivity	ASTM D257	Ohm.cm	3.4×1015
Shore Hardness	GB/T 531.1-2008	Shore A	44
Tear Strength	ASTM D624C-73	kN/m	30
Tensile strength	ASTM D412-75	Mpa	9
Elongation at Break	ASTM D412-75	%	750
bacteria resistance	ASTM G21 / expose 28 days	----	No bacteria
Working temperature		℃	-60 to 200

RF means Radio Frequency.
RF is generally defined at 300MHz to 8GHz, while microwave is defined at 8G to 40G.
The ministry of industry and information technology has released the frequency use plan of 5G system within the frequency band of 3000-5000MHz, making China the first country in the world to release the frequency use plan of 5G system within the frequency band.
In the 5G era, the number of channels has become more and more integrated, and 5G RF connectors are mainly board-to-board blind plug connectors.

The packing pictures are only for reference, all packing can be customized by different requirements
